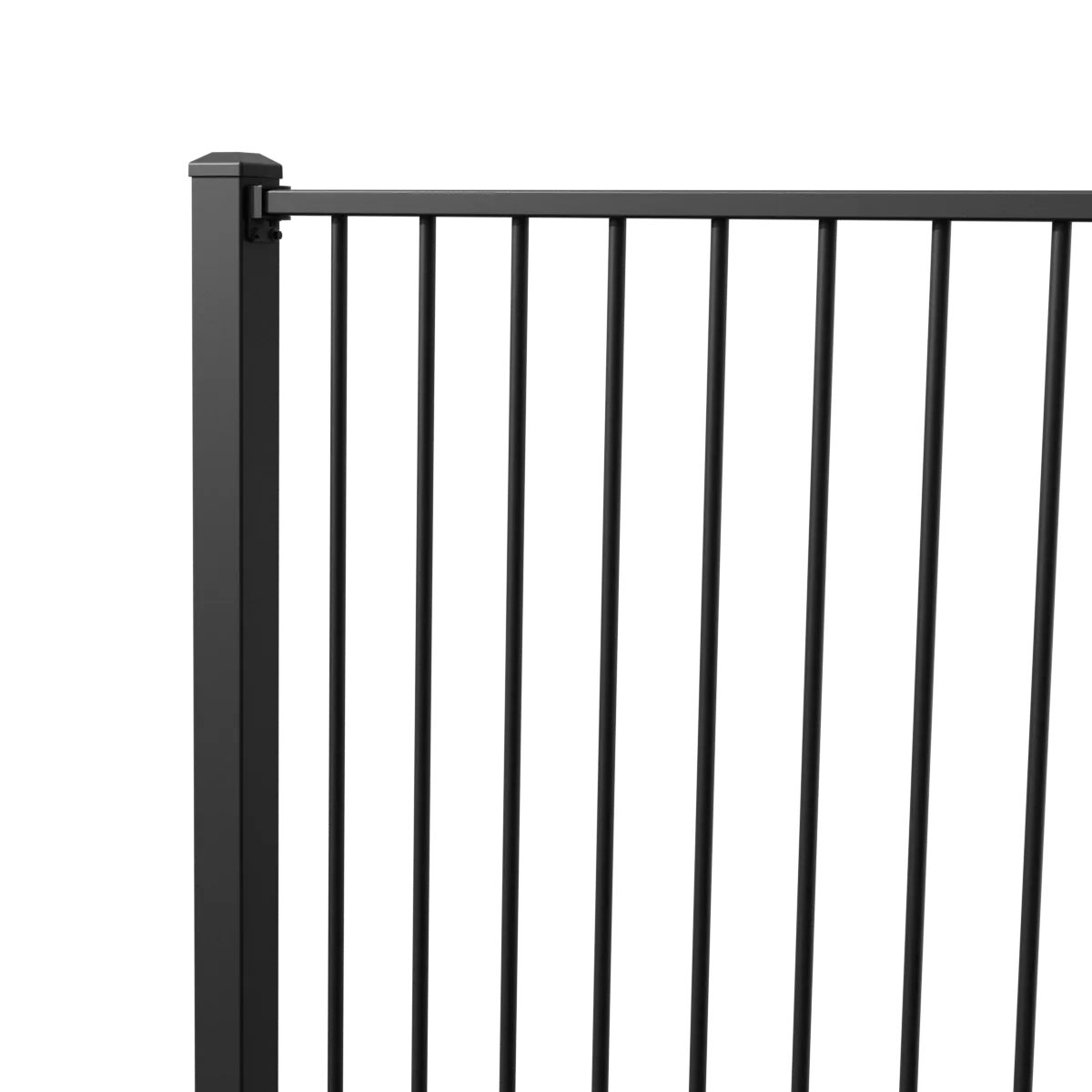

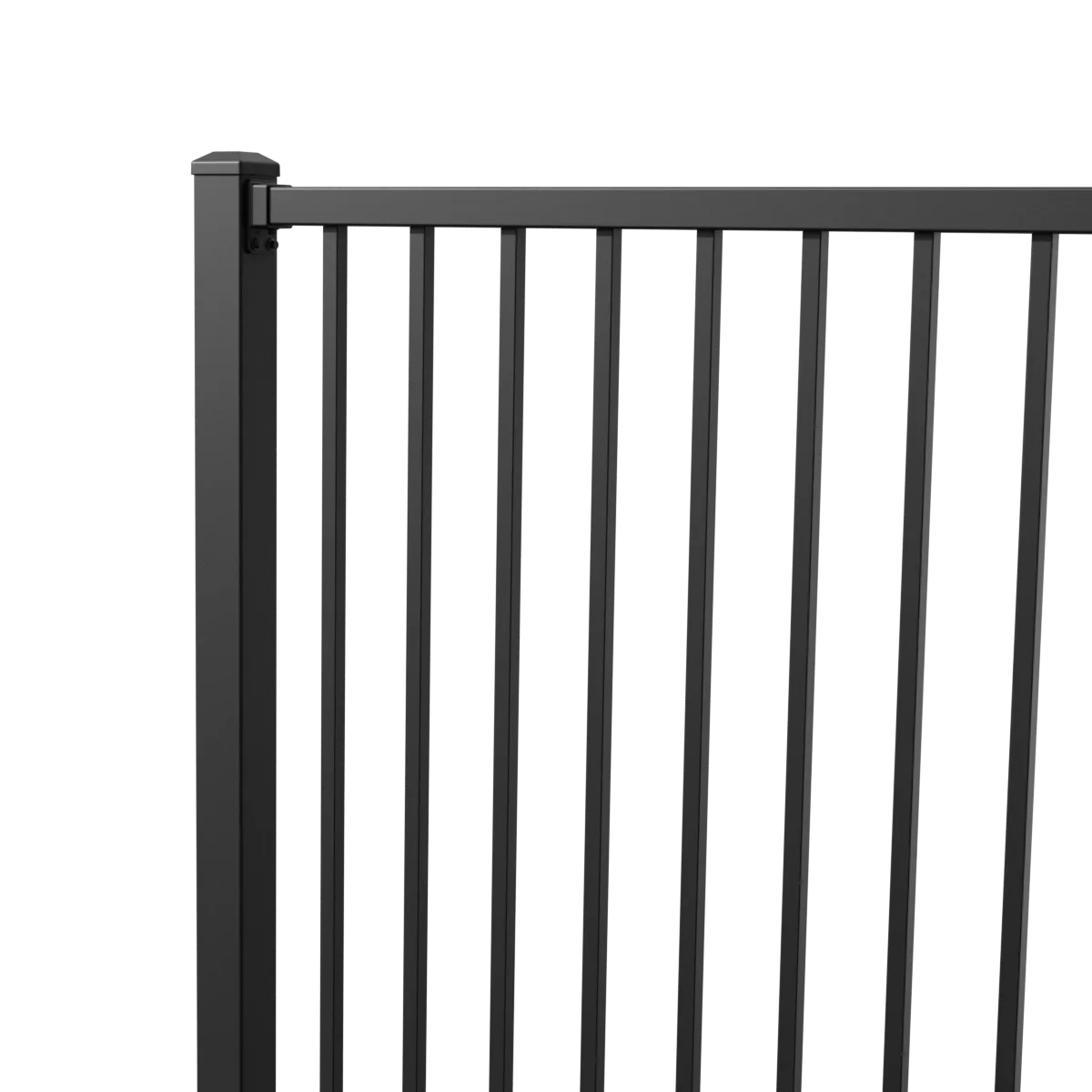

Maximus

The perfect balustrade

The Maximus fence panel was designed specifically for quick and efficient retaining wall installation, particularly in challenging locations, where it offers a rake of up to 30 degrees.

A heavy-duty top-rail and robust construction ensure the highest levels of protection. Complying with NZBC F4 specification requirements, Maximus can be installed at 2400mm centres with classic style and maximum strength.

    • Application
    • Industrial, Civil & Transport
    • Material
    • Aluminium
    • Height
    • Ex-stock at 1200mm H

    • Width
    • Ex-stock at 2400mm W

      Widths up to 2400mm W can be achieved by cutting the width of the panel down

    • Profiles
    • • 19x19mm aluminium vertical bar

      • 91mm gap between verticals

      • 50x50x3 aluminium horizontal top rail

      • 40x40x2 aluminium horizontal bottom rail

    • Colours
    • Ex-stock satin black
      Custom colour available on request

    • Posts
    • • 65x65x2.5mm in ground steel post 2000mm L

      • 65x65x2.5mm base plated steel post 1300mm L

    • Post Centres
    • Up to 2465mm

    • Gates
    • No ex-stock gates available. Premier ex-stock gates can be used

      Custom sizes on request

    • Pool Compliant
    • Yes

    • Balustrade Compliant
    • Yes

    • Raking Panels Available
    • Yes - up to 30 degrees

  • Rakeable to 30 degrees

  • Complies with NZBC F4

  • Heavy duty top rail

Ideal for:

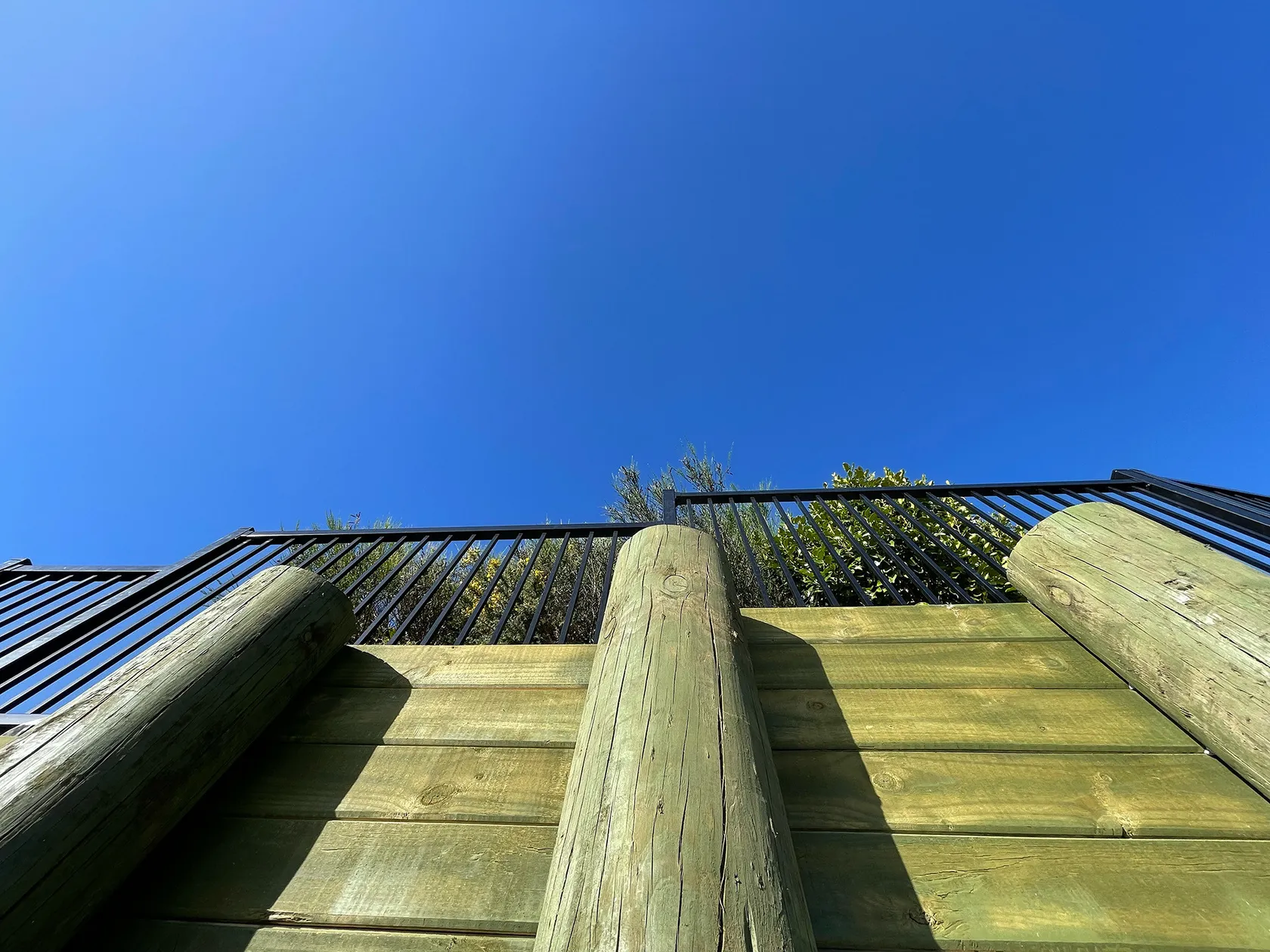

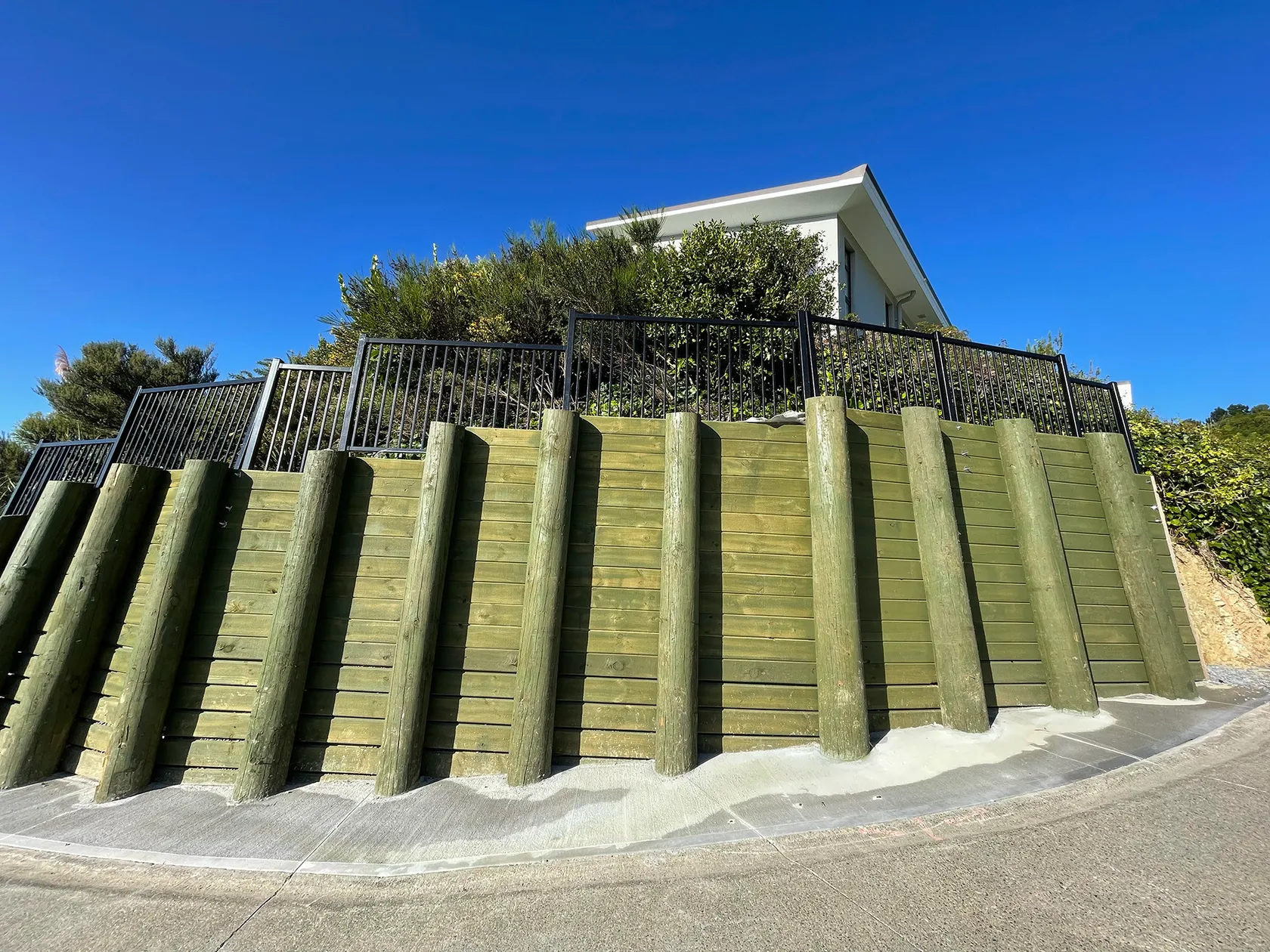

  • Retaining walls

  • Complies with pool standards

  • Childcare/parks

  • Cycleways/civil fencing

maximus-1200h-spec-sheet-r1.pdf Download
maximus-data-sheet.pdf Download
maximus-1200h.dwg Download
ps1-maximus-1200-h-balustrade.pdf Download
