Paladin

Striking modern style

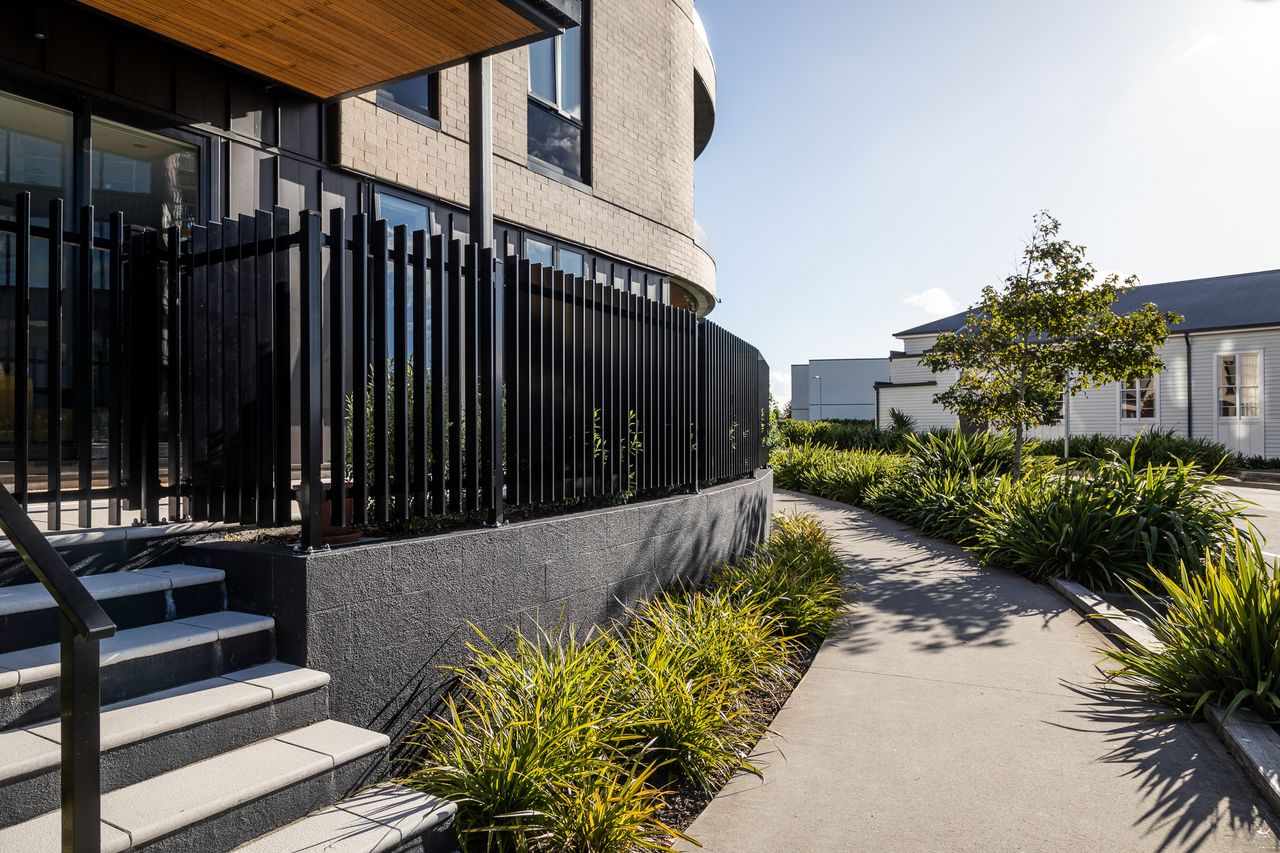

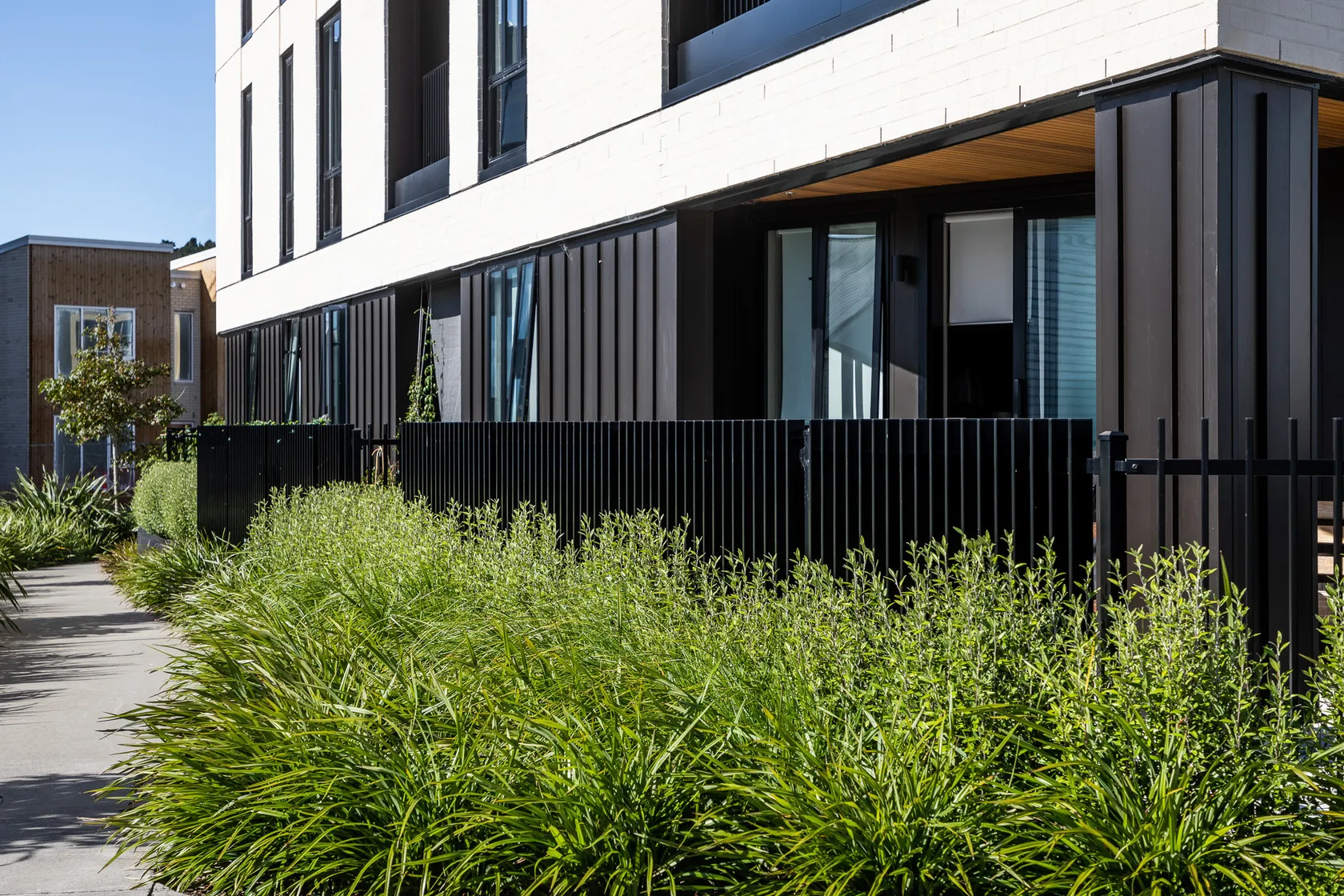

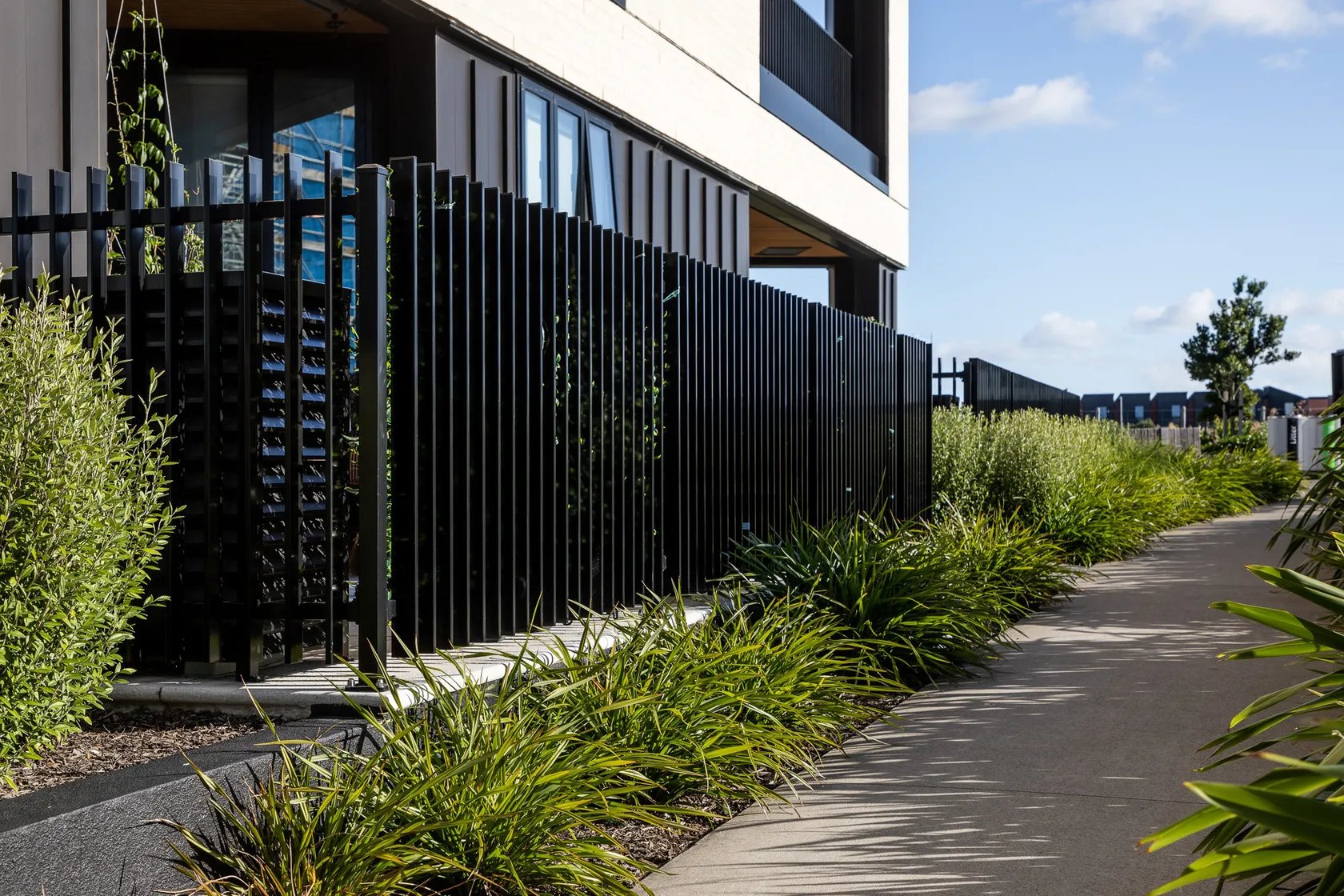

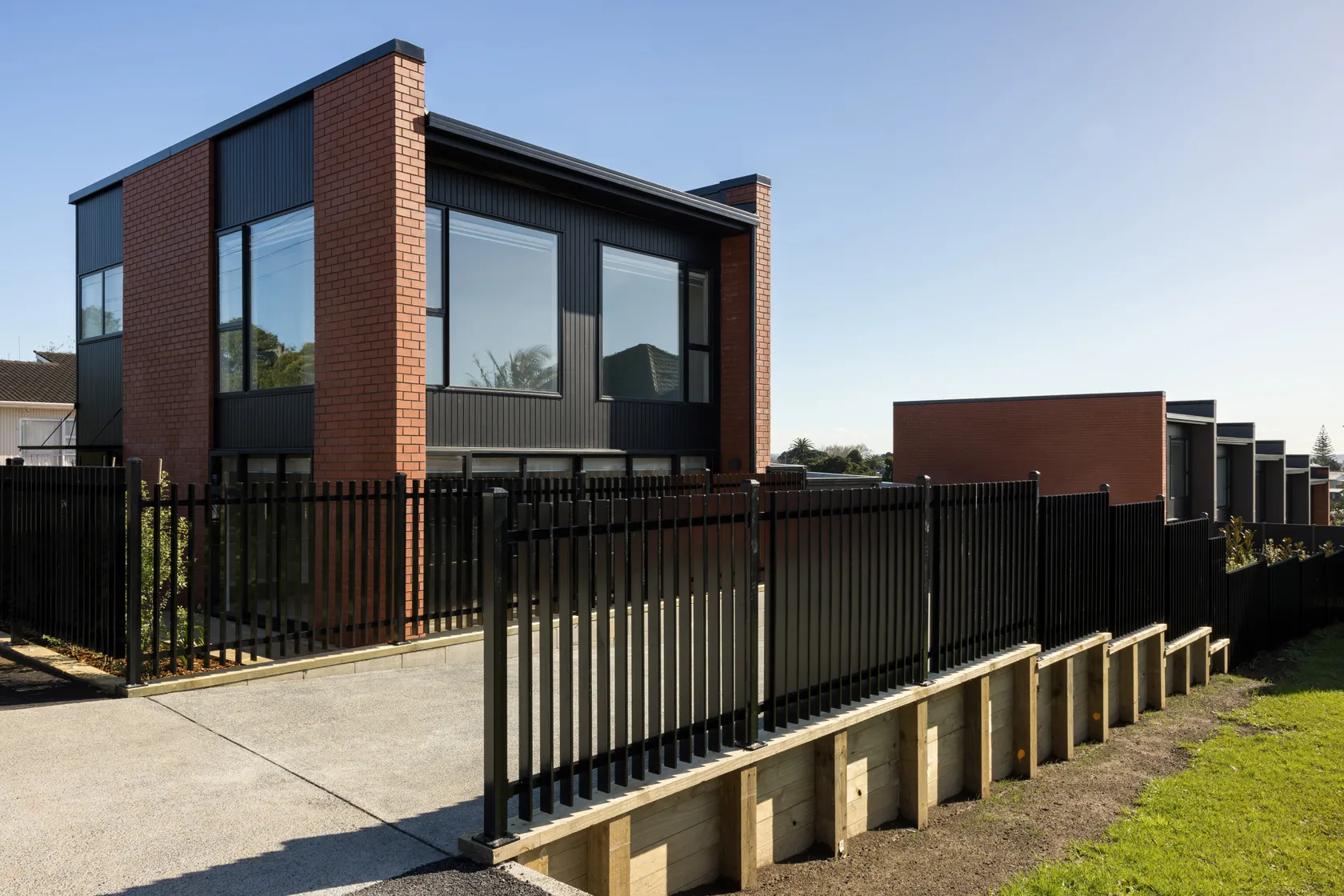

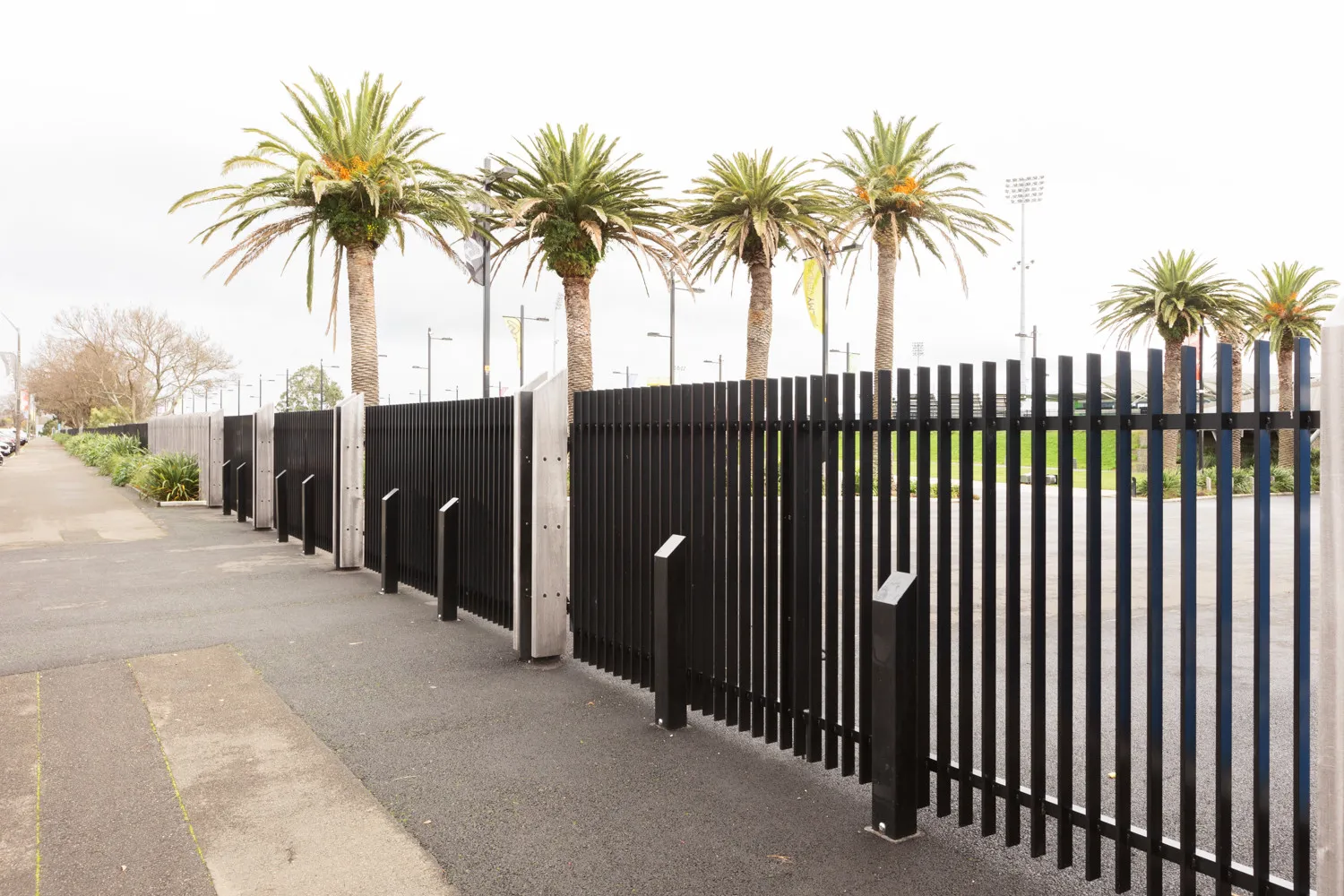

Paladin’s vertical ‘fin’ design makes it a perfect compliment to modern, architecturally designed housing. With the fins set perpendicular to the run of the fencing, Paladin combines clean, seamless lines with an elegant profile.

Paladin is available ex-stock in satin black and white and can be powder coated in custom colours on request. It is also customisable in width and height, and pool-compliant.

    • Application
    • Residential, Multi-unit Residential, Education & Parks, Retirement Villages
    • Material
    • Aluminium
    • Height
    • • 1200mm H
      • 1500mm H
      • 1800mm H

    • Width
    • Ex-stock at 2400mm W

      Widths up to 2400mm W can be achieved by cutting the width of the panel down

    • Profiles
    • • 65x16mm aluminium vertical fin

      • 90mm gap between verticals

      • 40x40x2mm aluminium horizontal rails

    • Colours
    • Ex-stock satin black and white
      Custom colour available on request

    • Posts
    • • 100x25x3 rectangle aluminium fin post, 1800mm L

      • 100x25x3 rectangle aluminium fin post, 2200mm L

      • 100x25x3 rectangle aluminium fin post, 2500mm L

      • 100x25x3 rectangle aluminium fin post, with welded baseplate 1300mm L

      • 65x65x2mm in ground aluminium post,1800mm L

      • 65x65x2mm in ground aluminium post,2200mm L

      • 65x65x2mm in ground aluminium post,2500mm L

      • 65x65x3mm base plated post, 1300mm L

      • 65x65x3mm base plated post, 2000mm L

    • Post Centres
    • Up to 2465mm W

    • Gates
    • Ex-Stock Pedestrian Gate available

      • 1200mm H x 1000mm W
      • 1500mm H x 1000mm W
      • 1800mm H x 1000mm W

      Custom sizes on request

    • Pool Compliant
    • Yes

    • Balustrade Compliant
    • Yes - at 1200mm post centres

    • Raking Panels Available
    • Yes - custom built

  • Seamless design

  • Corrosion-resistant easy-care

  • Available in a range of colours

  • Pool safety compliant

Ideal for:

  • Architectural residential housing

  • Playgrounds

  • Parks

  • Streetscapes

paladin-data-sheet.pdf Download
paladin-balustrade-installation-drawings.pdf Download
paladin-1200h-pool-fencing.pdf Download
paladin-balustrade-installation-drawings.pdf Download
paladin-1200h-pool-fencing.pdf Download
paladin-1200h.dwg Download
ps1-paladin-1200-h-balustrade.pdf Download
paladin-1200h-spec-sheet-r1-1.pdf Download
paladin-1500h-spec-sheet-r1.pdf Download
paladin-1800h-spec-sheet-r1.pdf Download
